Stress-Test Your Architecture in the Browser: A Deep Dive into Paperdraw.dev

When engineering high-availability, scalable distributed systems, we usually start in the same place: a blank drawing canvas. We use tools like Excalidraw, draw.io, or Lucidchart to lay down load balancers, database clusters, caches, message queues, and worker groups. We trace arrows between them, presenting a clean diagram of how requests flow under normal parameters.

But static diagrams share a fatal flaw: they only document the "happy path."

They can't show you what happens when your cache experiences a sudden 90% miss storm, how your backend responds when a database node lags by 400ms, or when network latency triggers cascading timeout errors. Understanding this under pressure has typically required writing complex mock scripts or deploying infrastructure pipelines to run stress tests in staging environments.

That is where Paperdraw.dev comes in—an interactive, browser-based system design simulator that bridges the gap between static blueprints and live infrastructure testing.

---

What is Paperdraw?

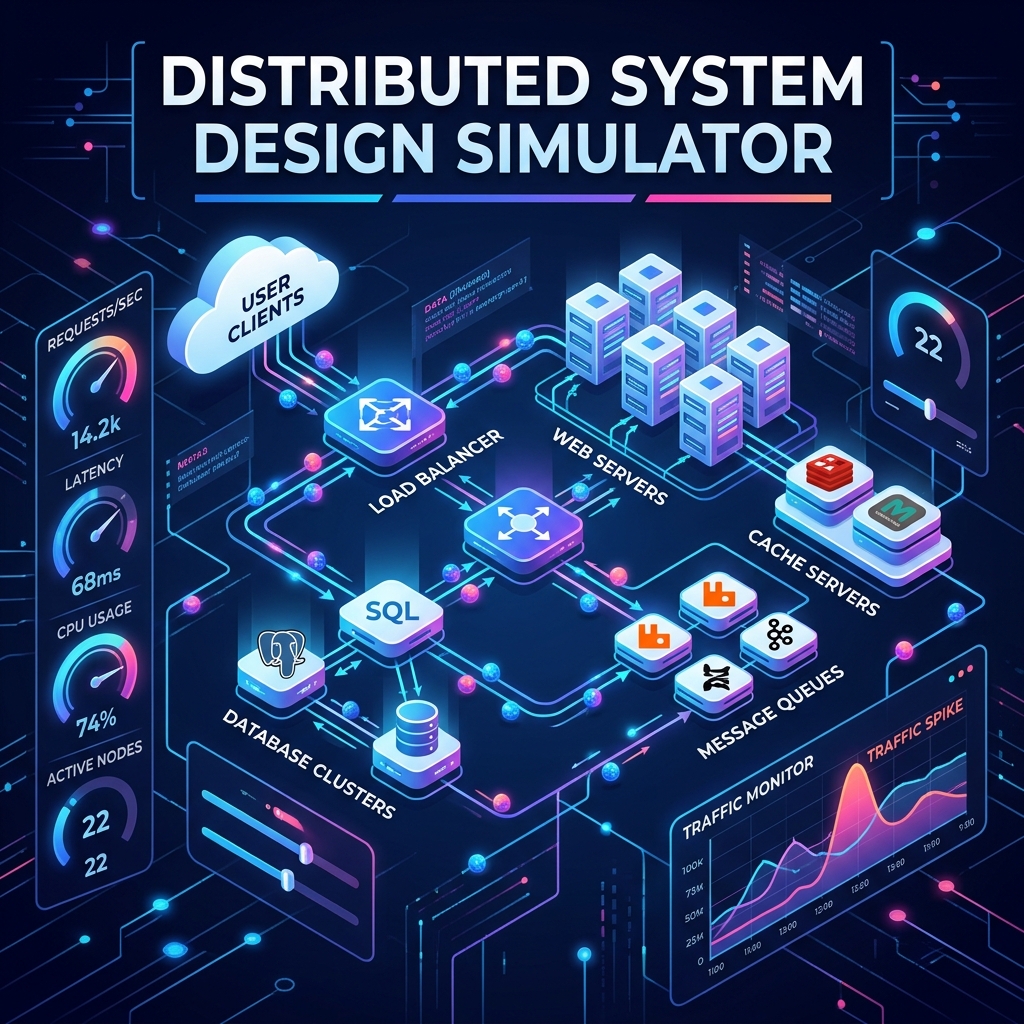

Paperdraw is a drag-and-drop system architecture design simulator. Unlike standard diagramming tools, Paperdraw features a live simulation engine. Once you assemble your servers, databases, queues, and gateways on the canvas, you can press **Play** to spin up virtual traffic flows. Visual tokens stream across lines in real-time, displaying throughput, queue sizes, cache hits, database lag, and request latency.

---

Core Features of Paperdraw.dev

1. Rich Distributed Components Library

You can populate your canvas with standard nodes that represent real-world distributed infrastructure architectures:

• Load Balancers: Route incoming traffic using strategies like Round Robin or Least Connections.
• Web & App Servers: Handle processing requests with customizable CPU throughput limits and thread counts.
• Cache Nodes (Redis/Memcached): Configure cache capacities, expiration rules (TTL), and write strategies to monitor hits/misses.
• Databases (SQL/NoSQL): Simulate read/write replicas, connection pooling limits, and transaction execution latencies.
• Message Queues (RabbitMQ/Kafka): Store incoming asynchronous message backlogs and monitor consumer processing lag.

2. Live Metrics Dashboard

As traffic circulates, every node displays floating live stats. Hovering over a component opens graphs charting critical indicators:

• System Latency (P50, P90, P99 curves)
• Throughput (Requests per Second - RPS)
• Component Error Rates (%)
• Database replication lag and queue depth

3. Browser-based Chaos Engineering

This is where Paperdraw shines. You don't just observe standard loads—you inject chaos dynamically while the simulation runs:

• Kill Database Replicas: Take components offline mid-run to test fallback paths and recovery strategies.
• Trigger Traffic Spikes: Simulate marketing campaigns or DDoS attacks to check where your system bottlenecks.
• Introduce Network Latency: Simulate packet loss or slow networks between availability zones.
• Simulate Cache Expiration: Witness "cache stampede" effects as backend databases get crushed under load.

---

Static Diagrams vs. Dynamic Simulation

Here is a comparison of how traditional architecture tools compare to Paperdraw:

---

Primary Use Cases

1. Preparing for System Design Interviews

During senior engineering interviews, candidates are often asked how a system recovers when things break. Paperdraw is a great practice sandbox. Instead of talking theoretically, you can build your design and test how the failure of an elastic search instance affect client-side timeouts.

2. Pre-production Architecture Validation

Before writing a single line of microservice boilerplate or provisioning AWS resources, architects can prototype components in Paperdraw to see if adding an asynchronous SQS queue will help absorb transaction spikes or if a Redis cluster is indeed needed to shield the read-heavy database.

3. Interactive Education and Pedagogy

For junior developers and CS students, understanding concepts like rate-limiting, load balancing algorithms, database master-slave replication, and read-through caching can be difficult. Paperdraw turns these abstract paradigms into interactive animations where request paths are clearly visible.

---
