Ultimate Guide to OpenWA: The Self-Hosted WhatsApp API Gateway & Plugin System

Integrating WhatsApp into your business applications often feels like a choice between two bad options: paying Meta exorbitant per-message charges for the official WhatsApp Cloud API, or wrestling with fragile, custom-built browser automation scripts that break every time WhatsApp Web updates.

If you've been searching for a middle ground, you've likely come across OpenWA. It is a free, open-source, self-hosted WhatsApp API Gateway. Rather than paying for Meta verified business accounts, OpenWA turns standard WhatsApp accounts into programmable HTTP gateways using Web automation engines.

Even better, OpenWA features a modular plugin architecture (OpenWA-plugins) that allows developers to extend the server's functionality with custom logic without modifying the core gateway codebase. Let's take a deep dive into the dashboard, plugin development, and crucial deployment FAQs.

1. Deep Dive Into the OpenWA Dashboard

OpenWA comes with a beautifully designed, sleek dark-themed administrative dashboard that runs locally (typically on port 2785). Let's review the key sections based on active system setups.

Real-Time Chats Interface

Under the Chats menu, administrators can see all ongoing threads for active WhatsApp sessions. It functions as a lightweight web chat client inside your gateway dashboard.

OpenWA Chats interface displaying active dialogs for the 'personal-whatsapp' session.

Webhooks & Filters

Webhooks are the backbone of event-driven integration. Whenever a WhatsApp event triggers (e.g. message received, message sent, qr generated, group update), OpenWA delivers a POST payload to your specified URL. You can also define granular matching filters (e.g., matching a specific Sender ID or group filter) to optimize network payloads.

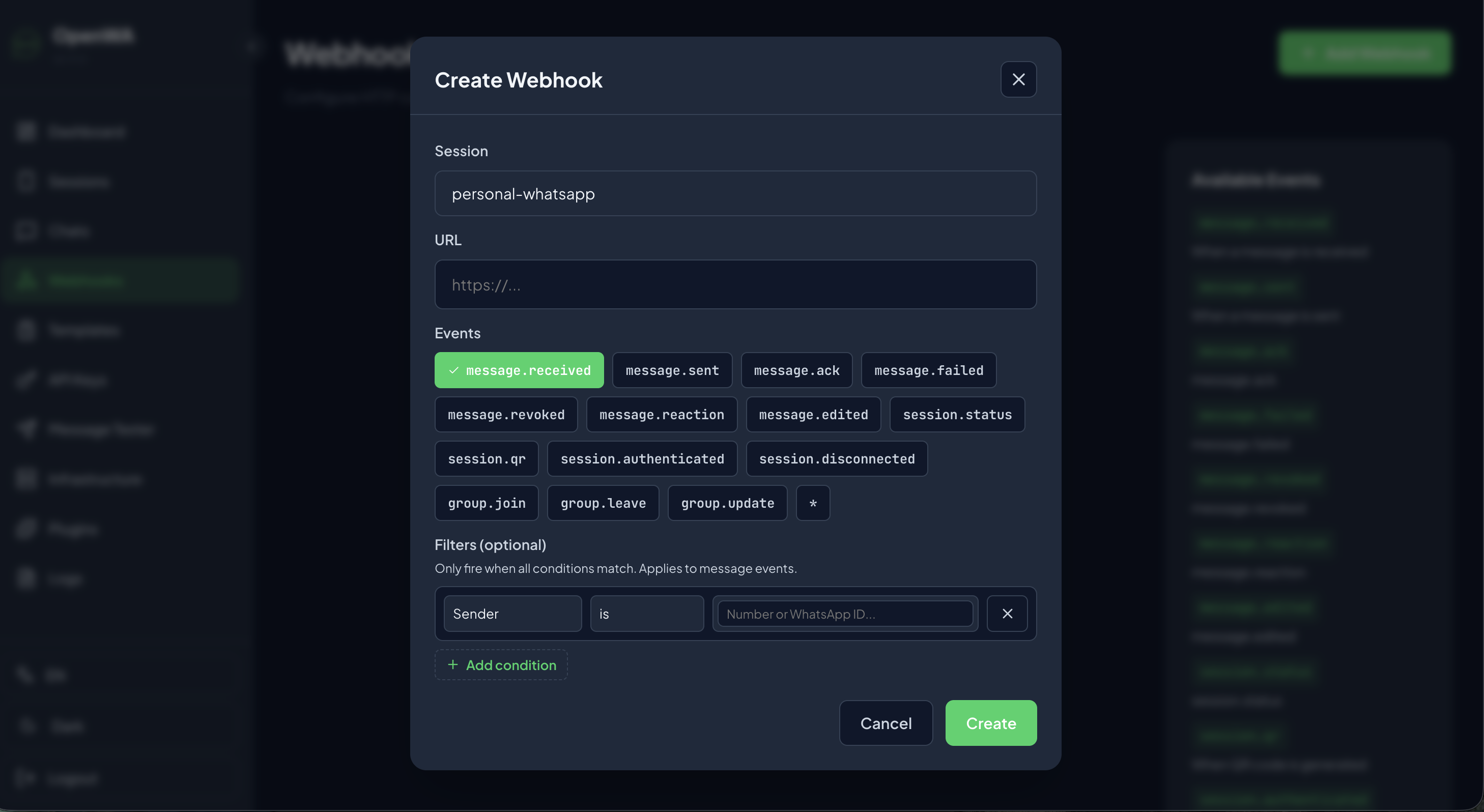

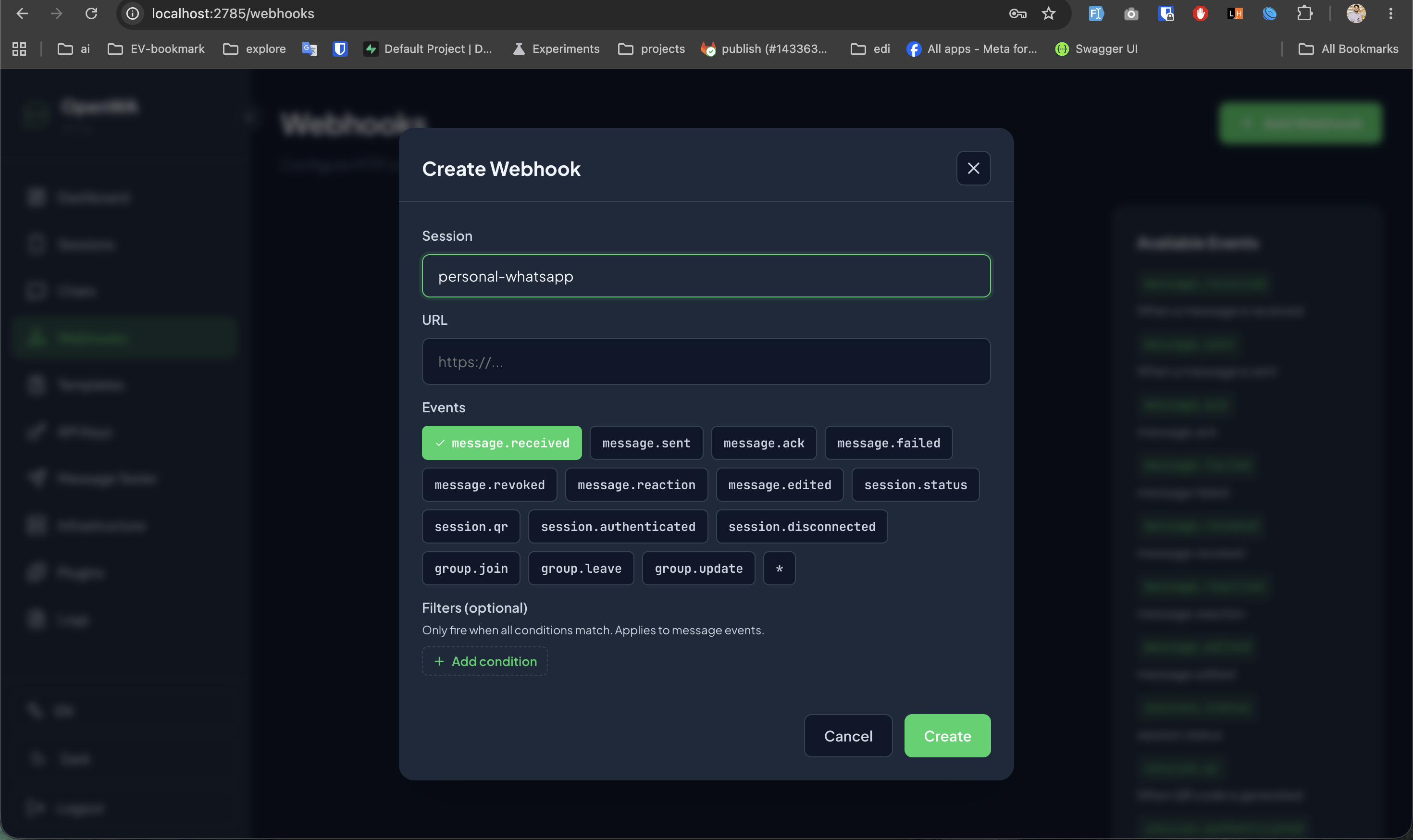

Left: Creating an event webhook trigger. Right: Applying conditions based on the sender ID.

Reusable Message Templates

To standardize auto-replies, OpenWA provides a dedicated **Templates** system. You can define dynamic templates featuring dynamic double-brace placeholders like {{name}} to build custom, formatted body copy, headers, and footers.

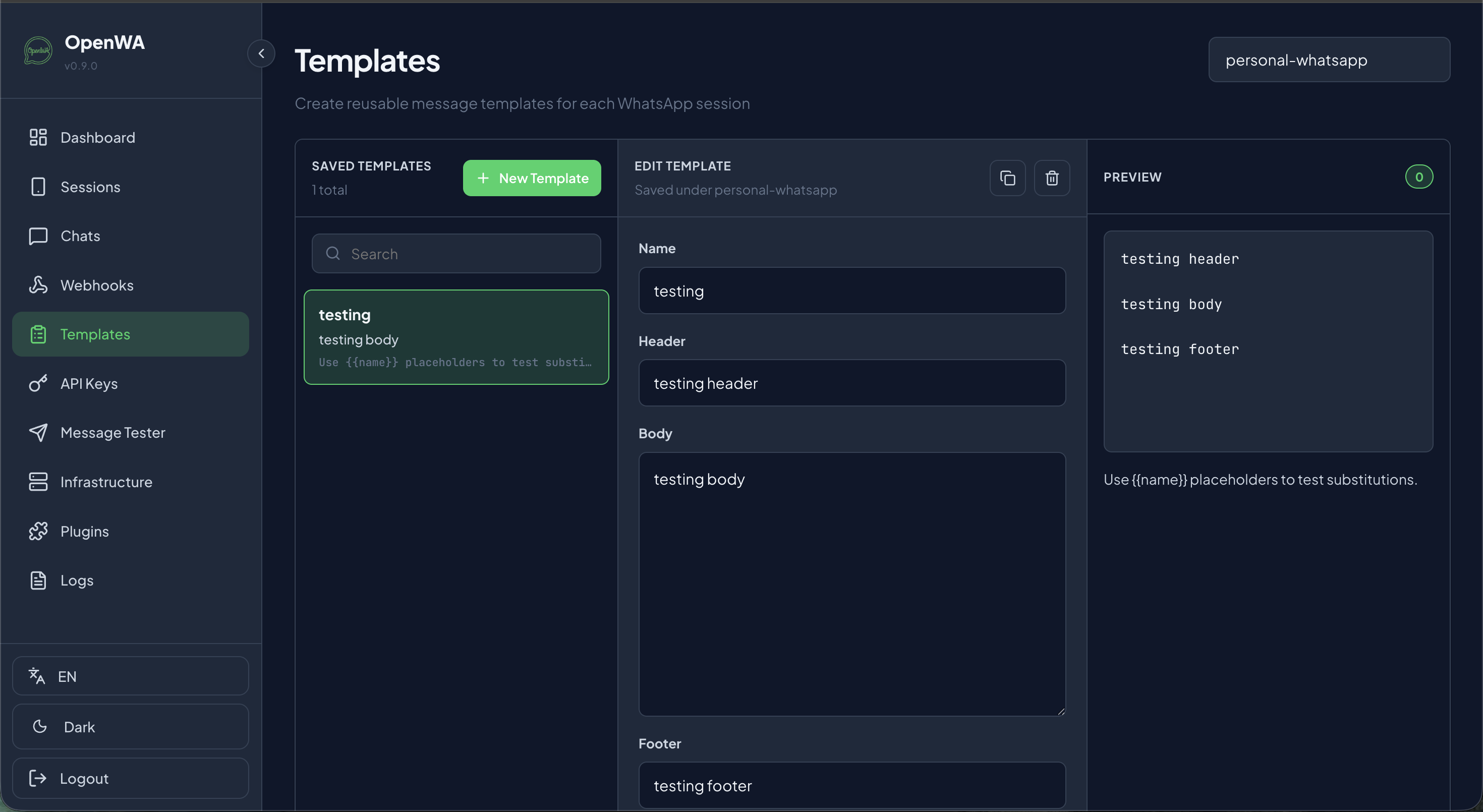

Creating structured message templates with placeholders.

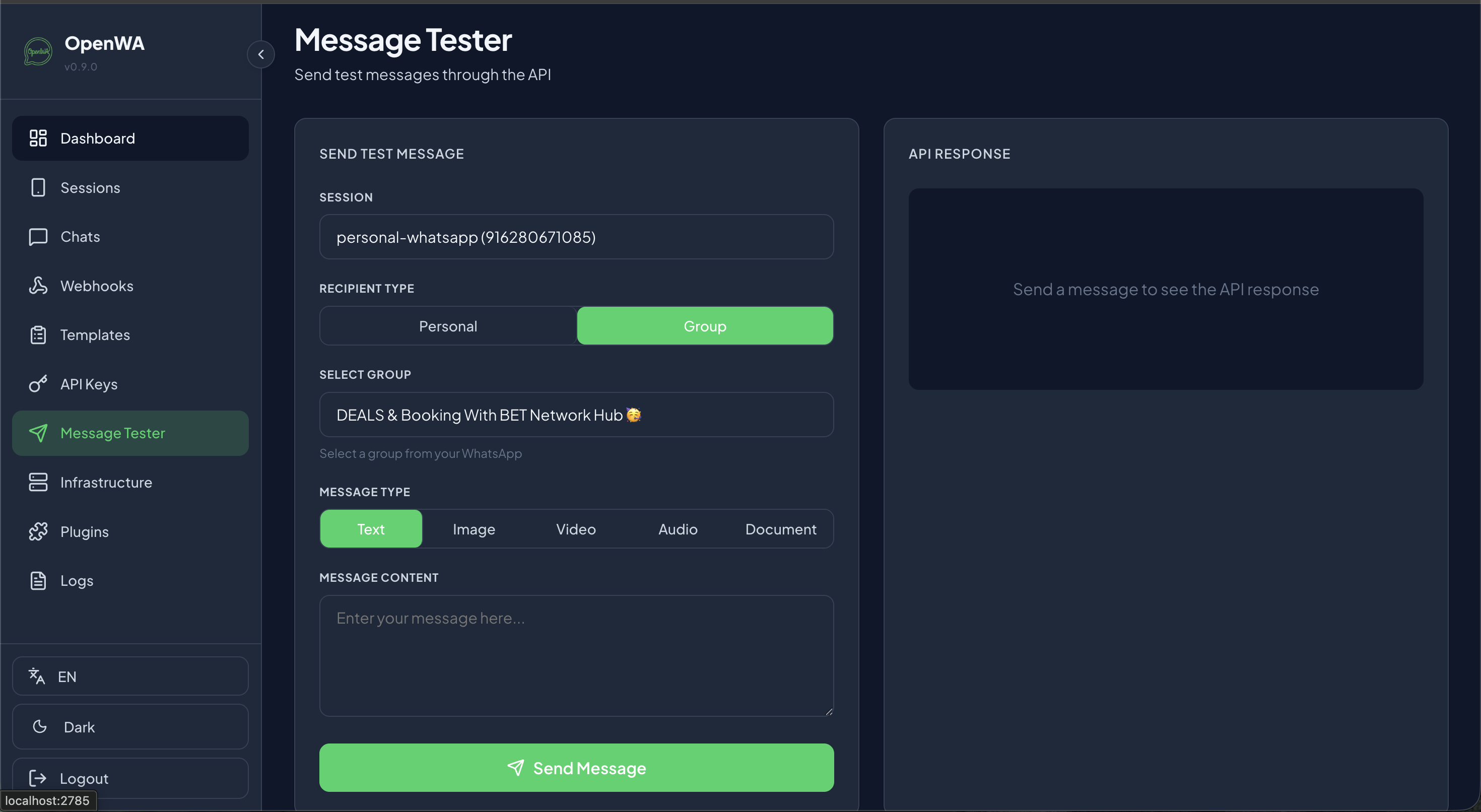

Message Tester

OpenWA embeds a developer utility under Message Tester. It allows you to simulate requests directly from the web interface, testing plain text, media attachments (images, video, audio), or PDF document payloads to single recipients or target group sessions before writing scripts.

The message testing interface for rapid debugging.

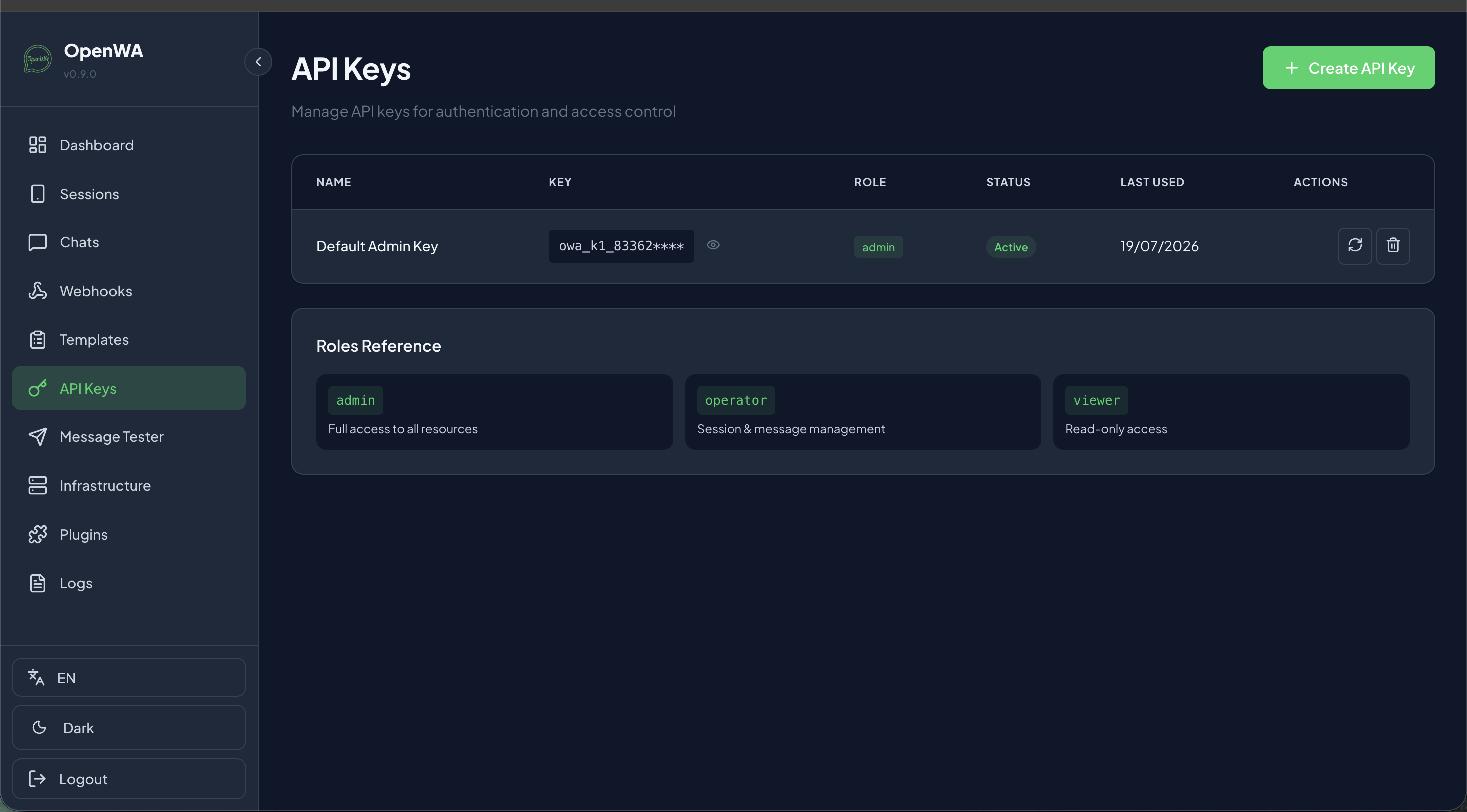

Authentication & Security

API keys prevent unauthorized access to your WhatsApp server. You can provision multiple API tokens with different roles:

• admin: Full access to gateway settings, sessions, and messaging.
• operator: Access to create messaging campaigns and read messages.
• viewer: Read-only access to chats and audits.

Infrastructure & Core Engines

OpenWA supports database migrations with SQLite (for small setups) or PostgreSQL (for heavy multi-session deployments). On the engine level, developers can switch between:

• WhatsApp Web.js Engine: Uses Puppeteer/Chromium under the hood. More resource intensive but highly accurate representation of web clients.
• Baileys Engine: Connects directly via WhatsApp Socket layers. Much lighter, fast, and does not require running a full browser environment.

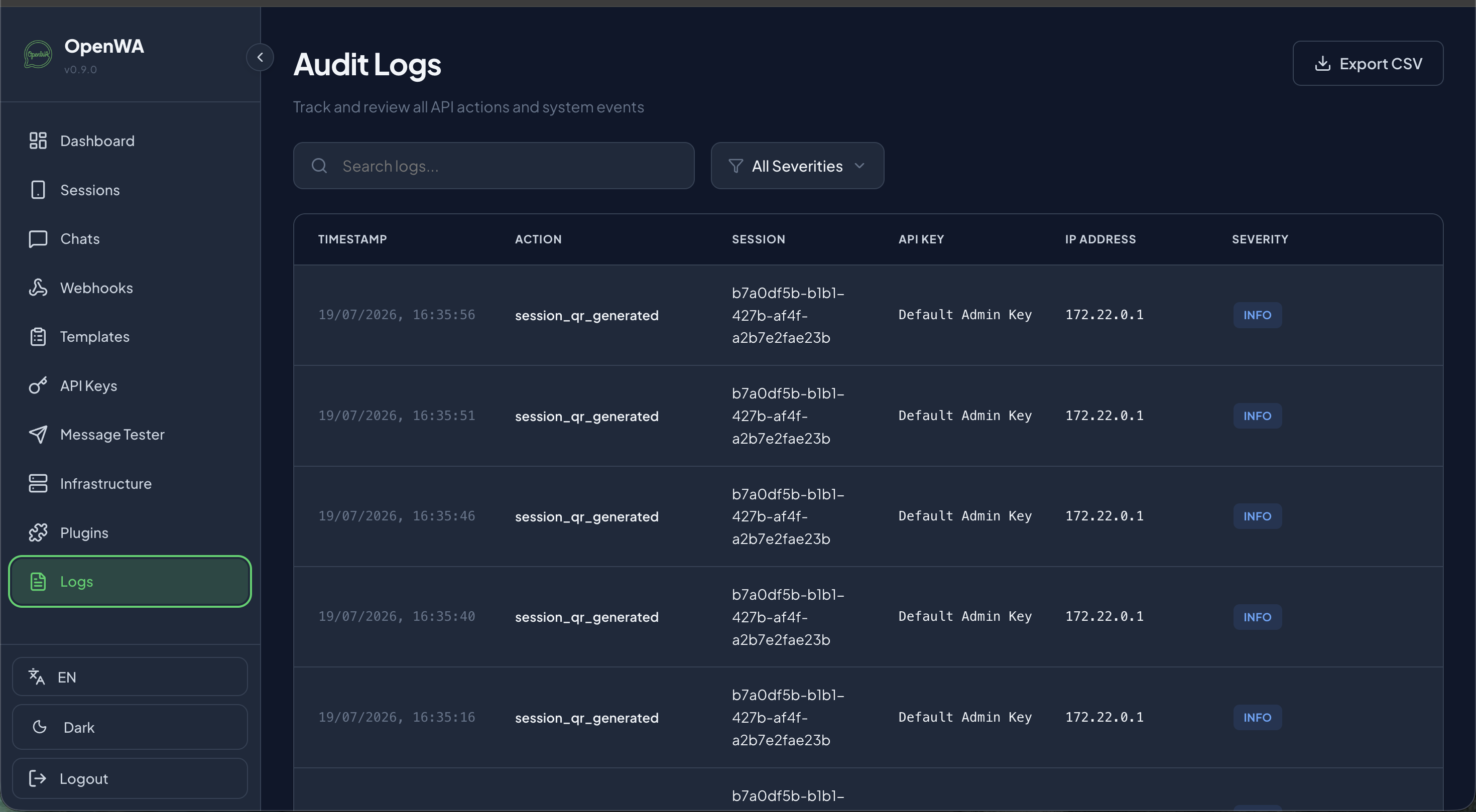

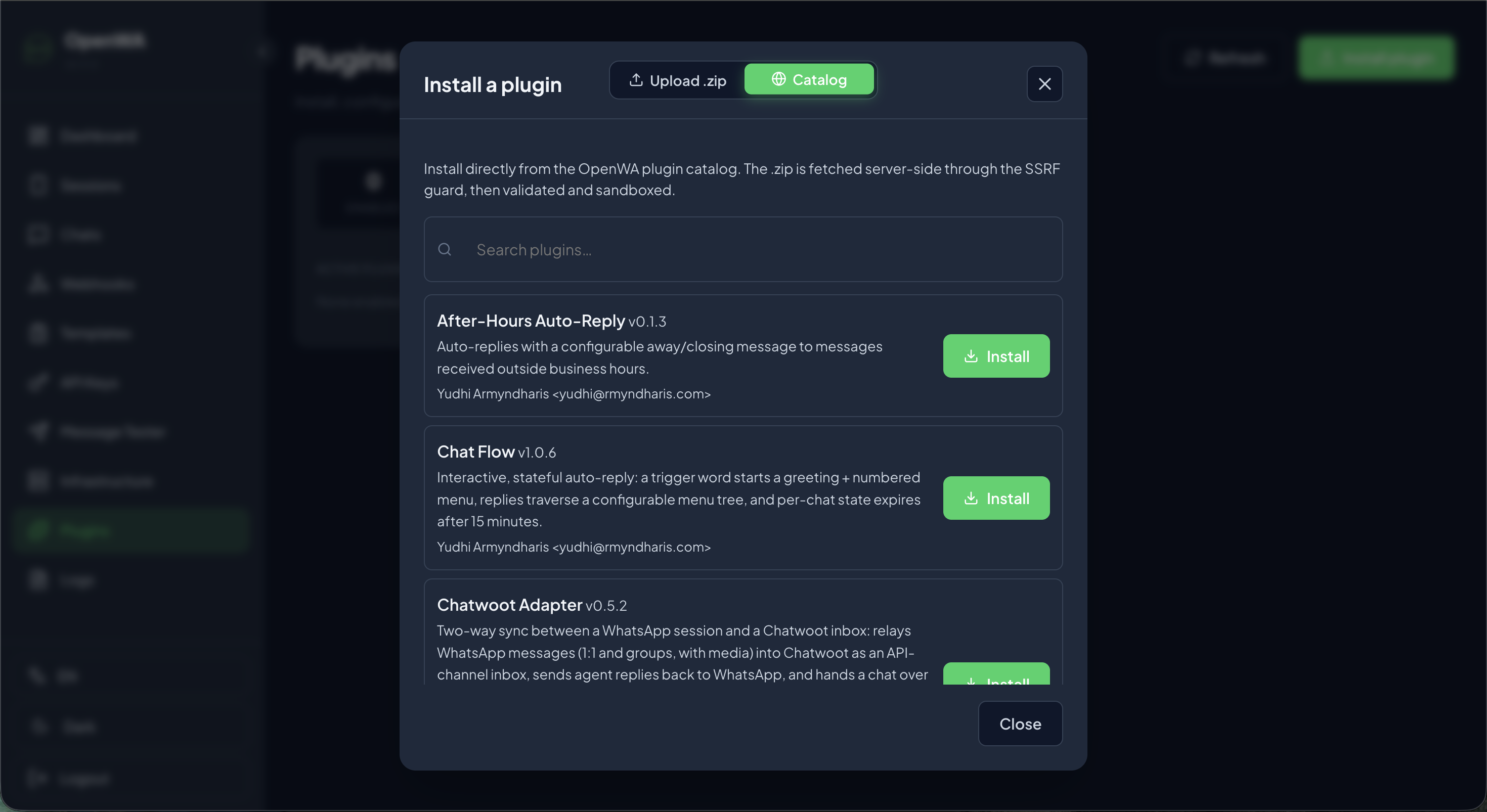

Audit Logs & Plugins Installation

The system records audit events such as session_qr_generated to track administrative events. Plugins can be loaded directly from the OpenWA plugin catalog (e.g. Chatwoot sync, after-hours responders) or uploaded as a simple .zip package.

2. How to Build custom Plugins for OpenWA

Instead of building a separate microservice listening to webhooks, you can write native plugins in TypeScript or JavaScript. Plugins execute inside the OpenWA sandbox, which has direct, low-latency access to the underlying engine.

Below is the boilerplate layout of a basic plugin directory:

my-custom-plugin/
├── plugin.json       # Plugin manifest
└── index.js          # Core plugin logic

Here is an example structure of the plugin.json file:

{
  "name": "Auto-AI Responder",
  "version": "1.0.0",
  "description": "Relays user queries to ChatGPT and auto-replies on WhatsApp",
  "author": "VitableTech",
  "permissions": [
    "chats:read",
    "messages:send"
  ]
}

And here is the corresponding index.js event listener:

module.exports = async function initPlugin(api) {
  // Subscribe to incoming message events
  api.on('message', async (message) => {
    // Ignore group chats or outgoing messages
    if (message.isGroup || message.fromMe) return;

    if (message.body.toLowerCase() === '!ping') {
      await api.sendMessage(message.from, 'Pong! OpenWA Plugin is fully active.');
    }

    // Relay other customer messages to your CRM API
  });
};

3. Critical FAQ for Developers & Users
